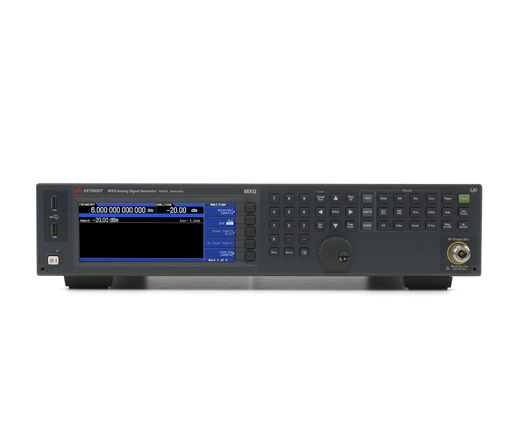

Keysight Technologies N5181B-503
9 kHz - 3 GHz MXG Analog Signal Generator, Type N (f)
Rent or Lease • Buy Used From $9,762
The Keysight, formerly Agilent N5181B-503 is a 3 GHz MXG Analog Signal Generator. You can drive power amplifiers and characterize nonlinear behavior with the N5181B-503. Other functions include the ability to test receiver performance by simulating complex analog modulation scenarios with its multi-function generator. Keysight N5181B-503 - Specifications
Output Power @1 GHz: -144 dBm to 26 dBm
Phase Noise @1 GHz (20 kHz offset): -146 dBc/Hz
Harmonics @1 GHz: <-35 dBc
IQ Modulation BW Internal/External: n/a
Non-Harmonics @1 GHz: -96 dBc
Sweep Mode
- List
- Step
Baseband Generator Mode: n/a
Software-General Purpose:
- AM, FM, PM
- Pulse
- Pulse Train Generator
Software-Cellular/Wireless Connectivity: n/a
Software-Audio/Video Broadcasting: n/a
Software-Detection/Positioning/Tracking/Navigation: n/a
Waveform Playback Memory: n/a
Frequency Modulation-Maximum Deviation @1 GHz: 4 MHz
Frequency Modulation-Rate @100 kHz Deviation: DC to 7 MHz
Phase Modulation-Maximum Deviation in Normal Mode: 0.5 rad to 8 rad
Phase Modulation-Maximum Deviation in High-BW Mode: 0.05 rad to 0.8 rad
Amplitude Modulation-Maximum Depth: 100%
Amplitude Modulation-Rate: 0 to 50 kHz
Applications Available: Yes
Analog: Yes
Frequency Switching = 800 ?s
- Configurations
- Resources
- FAQsAI
--, 099, 503
See Configuration Details
-
099
Expanded license key upgradability
-
503
Frequency range, 9 kHz to 3GHz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
USB Software I/O Libraries
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 099, 1EA, 1EQ, 503
See Configuration Details
-
503
Frequency range, 9 kHz to 3GHz
-
099
Expanded license key upgradability
-
1EQ
Low specified power (less than -110 dBm)
-
1EA
High output power
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 099, 1EA, 503, UNW
See Configuration Details
-
503
Frequency range, 9 kHz to 3GHz
-
099
Expanded license key upgradability
-
1EA
High output power
-
UNW
Narrow pulse modulation
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 099, 1EA, 503, UNW
See Configuration Details
-
503
Frequency range, 9 kHz to 3GHz
-
099
Expanded license key upgradability
-
1EA
High output power
-
UNW
Narrow pulse modulation
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 006, 099, 503, UNX
See Configuration Details
-
099
Expanded license key upgradability
-
503
Frequency range, 9 kHz to 3GHz
-
UNX
Low phase noise
-
006
Instrument security and removable memory card
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 099, 503, UNT
See Configuration Details
-
UNT
AM, FM, phase modulation
-
099
Expanded license key upgradability
-
503
Frequency range, 9 kHz to 3GHz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 006, 099, 503, UNX
See Configuration Details
-
006
Instrument security and removable memory card
-
099
Expanded license key upgradability
-
503
Frequency range, 9 kHz to 3GHz
-
UNX
Low phase noise
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 099, 1EA, 503, UNY
See Configuration Details
-
099
Expanded license key upgradability
-
1EA
High output power
-
503
Frequency range, 9 kHz to 3GHz
-
UNY
Enhanced low phase noise
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
USB Software I/O Libraries
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 099, 1EA, 303, 503
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 099, 320, 503, UNW, UNX
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 099, 1EA, 320, 503, UNW, UNX
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 503
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 099, 1EA, 503
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 503, UNW
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 099, 1EA, 320, 503, UNT, UNW
See Configuration Details
-
099
Expanded license key upgradability
-
1EA
High output power
-
503
Frequency range, 9 kHz to 3GHz
-
UNT
AM, FM, phase modulation
-
UNW
Narrow pulse modulation
-
320
Pulse train generator
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
USB Software I/O Libraries
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 006, 099, 1EA, 503, UNY
See Configuration Details
-
006
Instrument security and removable memory card
-
099
Expanded license key upgradability
-
1EA
High output power
-
503
Frequency range, 9 kHz to 3GHz
-
UNY
Enhanced low phase noise
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
USB Software I/O Libraries
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 099, 1EA, 503, UNT, UNW
See Configuration Details
-
099
Expanded license key upgradability
-
1EA
High output power
-
503
Frequency range, 9 kHz to 3GHz
-
UNT
AM, FM, phase modulation
-
UNW
Narrow pulse modulation
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
USB Software I/O Libraries
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What frequency range does the Keysight N5181B-503 analog signal generator cover?
The Keysight N5181B-503 MXG X-Series RF analog signal generator operates from 9 kHz to 3 GHz. This frequency range makes it well-suited for applications in wireless communications, aerospace, and general RF testing. The instrument maintains excellent frequency stability with typical aging specifications and supports external reference inputs from +3 to +7 dBm for optimal performance.
What is the maximum output power specification of the N5181B-503?
The N5181B-503 provides maximum output power specifications quoted between 20 and 30 degrees C, with typical decreases of 0.01 dB per degree C for temperatures outside this range. With Option 1EA (high output power), the instrument can deliver enhanced power levels while maintaining excellent absolute level accuracy specifications across the full 9 kHz to 3 GHz frequency range.
How fast can the N5181B-503 switch frequencies?
The N5181B-503 achieves frequency switching to within 0.1 ppm of final frequency or within 100 Hz, whichever is greater. With internal channel corrections on, the frequency switching speed is less than 1.3 ms measured for list mode and SCPI mode cached frequency points. For the initial frequency point in SCPI mode, the time is less than 3.3 ms measured, with the instrument automatically caching the most recently used 1024 frequencies.
What phase noise performance can I expect from the N5181B-503?
The N5181B-503 delivers excellent phase noise performance measured from 20 to 30 degrees C at +10 dBm or maximum specified power, whichever is less. Detailed phase noise specifications are provided at carrier frequencies of 100 MHz, 250 MHz, 500 MHz, 1 GHz, 2 GHz, and 3 GHz across various offset frequencies. Option UNX provides low phase noise performance, while Option UNY offers enhanced low phase noise with additional optimization modes.
What analog modulation types does the N5181B-503 support?
The N5181B-503 supports comprehensive analog modulation including AM, FM, and phase modulation when equipped with Option UNT. FM specifications include DCFM calibration for temperature stability with typical performance immediately after calibration, and digital synthesis band FM deviation of 5 MHz. AM specifications apply 6 dB below maximum specified power from 20 to 30 degrees C, and the generator supports both internal and external modulation sources.
Does the N5181B-503 include pulse modulation capabilities?
Yes, with Option UNW (narrow pulse modulation), the N5181B-503 provides extensive pulse modulation features. Pulse specifications apply to frequencies greater than 100 MHz and power set above -3 dBm, though it is operable down to 9 kHz. The internal pulse generator supports multiple modes including free-run, square, triggered, adjustable doublet, trigger doublet, and gated, with pulse widths from 20 ns to pulse period minus 10 ns and pulse periods from 30 ns to 42 seconds.
What is the SSB phase noise at 1 GHz for the standard N5181B-503?
At 1 GHz carrier frequency, the standard N5181B-503 provides phase noise specifications from 20 to 30 degrees C excluding mechanical vibration. Typical measured values show performance at -87 dBc/Hz at 10 Hz offset, -93 dBc/Hz at 1 kHz, -106 dBc/Hz at 10 kHz, -123 dBc/Hz at 100 kHz, -136 dBc/Hz at 1 MHz, and -141 dBc/Hz at 10 MHz offset. Performance can be significantly enhanced with phase noise options UNX or UNY.
What interfaces are available on the N5181B-503 for remote control?
The N5181B-503 features comprehensive remote connectivity including GPIB with configurable address, LAN interface supporting multiple protocols, USB device port for USBTMC, and rear panel host USB ports. The instrument is LXI compliant and supports both SCPI and legacy programming languages. Additional I/O includes external trigger inputs, reference clock input/output, modulation inputs, and various analog outputs for sweep and LF signals.
