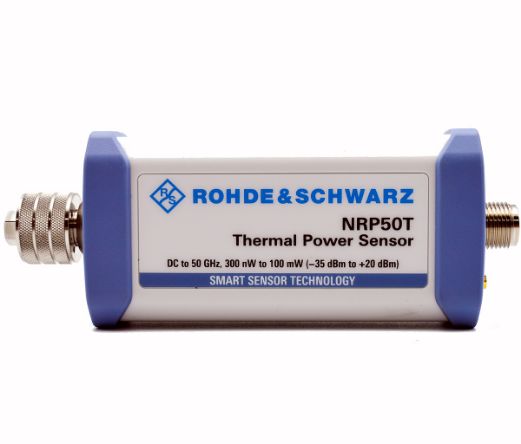

Rohde & Schwarz NRP50T
50 GHz Thermal power sensor (-35 dBm to +20 dBm)
Perform complex measurement tasks efficiently and accurately with the Rohde & Schwarz NRP50T thermal power sensor.
The R&S NRP50T thermal power sensor offers high accuracy and tolerates any type of modulation. It is a self-contained, fully characterized device that can be operated with NRP2 base unit with a laptop PC via USB or with other Rohde & Schwarz instruments, such as signal generators, signal analyzers, spectrum analyzers, and network analyzers.
Rohde & Schwarz NRP50T Features and Specifications:
- Frequency range: DC to 50GHz
- Level range: -35dBm to 20dB
- Connector type: 2.4mm (m)
- Power range: 300 nW to 100 mW (-35dBm to 20dBm)
- Maximum average power: 300 mW
- Peak envelope power: 10W (1 us)
- Zero offset: 15 nW typical
- Noise: 15 nW typical
- Power measurement uncertainty at 20degree C to 25degrees C: 0.040dB to 0.143dB (absolute), 0.010dB (relative)
- Measurement time: 40ms
The Rohde & Schwarz NRP50T thermal power sensor is available for rent or lease at TRS-RenTelco with 24/7 support. To learn more or to get a quote, call us at 800.874.7123.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cable USB Power Sensor 1.5 m
Qty: 1 -
USB Drive Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Rohde & Schwarz NRP50T Spec Sheet
