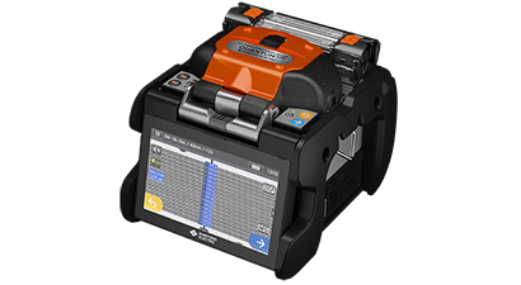

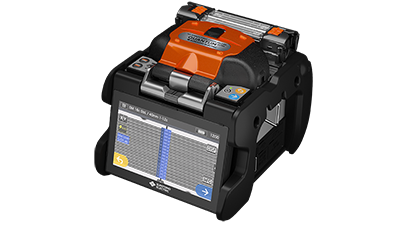

Sumitomo QULTRA-RBN
Ribbon Fusion Splicer
Rent or Lease
Sumitomo Electric - Quantum-Ultra Ribbon
Sumitomo Electric announces the release of the Quantum-Ultra Ribbon – the next generation of future-proof ribbon fiber splicers. The new AI-enabled splicer with NanoTune™ technology is key to deploying next-generation hyper-scale networks. This future-proof machine has been designed to maximize work efficiency with state-of-the-art technology, including NanoTune™, E-ACAS, dual independent ovens, tool-free replaceable v-grooves, and special coatings. Using replaceable V-groove kits, the splicer becomes highly versatile adapting to fiber counts of up to 16 and 250μm and 200μm pitch ecosystems. The Quantum-Ultra Ribbon is ready to support any network, no matter the fiber count or pitch requirements.
Quantum-Ultra Ribbon Product Highlights
- Supports ribbon sizes up to 16 fibers (and down to 1–16 fibers)
- Compatible fiber types: SMF (G.652), MMF (G.651), DSF (G.653), NZDSF (G.655), BI‑F (G.657)
- Cladding diameter: 125 µm
- Coating diameter range: 200 µm to 900 µm (with ribbon coatings 200–400 µm thickness)
- Typical splice loss: SMF 0.05 dB, MMF 0.02 dB, DSF 0.08 dB, NZDSF 0.08 dB
- Typical splice time: ≈11 seconds (SM 12C Quick Mode / SM 16C Std Mode)
- Typical heat (sleeve shrink) time: ≈28 seconds (40 mm sleeve, Quick Mode)
- Proof test range: 1.96 to 2.09 N
- Battery performance: Approx. 180 splice + heat cycles per charge (BU‑16 battery)
- Physical size and weight: 128 W × 154 D × 130 H mm; ~1.8 kg (without battery), ~2.1 kg (with battery)
Sumitomo & TRS-RenTelco
TRS-RenTelco is a proud partner of Sumitomo Electric and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Sumitomo Electric allows us to ensure we have the right Datacom Cable Test solution for your job.
Renting Datacom Cable Test
With TRS-RenTelco renting Datacom Cable Test equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 4,400 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Additional Information
Manufacturer Home Page | Sumitomo Electric
- Configurations
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cable USB-A - USB-MiniB
Qty: 1 -
Single fiber adapter for FC-6+
Qty: 1 -
Battery Unit, QFS-Lithium Ion, Type-56 Splicer, BU-16
Qty: 1 -
Case,Shipping for Type Q102 Splicer Model
Qty: 1 -
Fiber off-cut collector
Qty: 1 -
Electrodes for fusion splicers, compatible with TYPE-72, TYPE-82, and TYPE-Q102 series and most other splicers
Qty: 1 -
Blue Case for FC-6+ Cleaver
Qty: 1 -
Tabletop Automatic Blade Rotation Cleaver
Qty: 1 -
Holders, 12ct. Ribbon Fiber, Mass Splicer, V Shape
Qty: 1 -
Thermal Jacket Remover; Compatible with 200 & 250um ribbon and single fiber
Qty: 1 -
Adapter, ADC with AC cord for JR-7, BC-12
Qty: 1 -
Cord, AC Power, For Q102 Series Splicers (PC-AC2)
Qty: 1 -
Orange Work table for Sumitomo Splicers (attached to CC-72 Case)
Qty: 1 -
SUMITOMO MANUALS
Qty: 1 -
AC Adapter/Power Supply, For Q102 Series Splicers, ADC-16
Qty: 1
