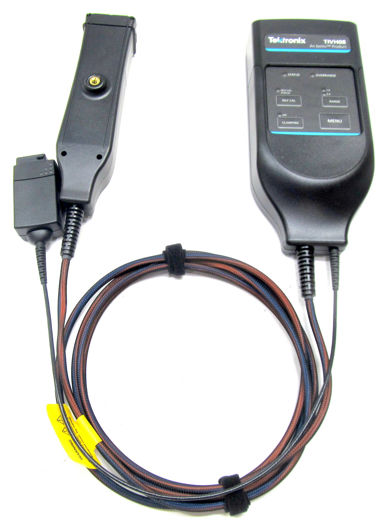

Tektronix TIVH08

Diff 800MHZ 1X/5X/10X/25X/50X/100X/250X/500X/1000X +/- 1kV

Tektronix - TIVH08

The Tektronix TIVM and TIVH Series IsoVu™ Measurement Systems offer galvanically isolated measurement solutions for accurately resolving high bandwidth, differential signals up to ±2500 V in the presence of large common mode voltages with the best in class common mode rejection performance across its bandwidth.

TIVH08 Product Highlights

• Bandwidths from DC to 1 GHz

• 100 Million to 1 (160 dB) Common Mode Rejection from DC up to 1 MHz

• 10,000 to 1 (80 dB) Common Mode Rejection at 1 GHz

• 60 kV peak Common Mode Voltage

• Up to ±2500 V Differential (DC + pk AC)

• Up to ±2500 V offset range

• Output clamping

• Safety certified

• DC and AC input coupling

• 16 Logic Channels with 80 ps Timing Resolution for Debug of digital and analog signals (MSO70000 Series only)

Tektronix & TRS-RenTelco

TRS-RenTelco is a proud partner of Tektronix and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry.  Our close relationship with Tektronix allows us to ensure we have the right Oscilloscopes solution for your job.

Renting Oscilloscopes

With TRS-RenTelco, renting Oscilloscopes equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.

Links to Additional Information

Tektronix Products from TRS-RenTelco

Other Oscilloscopes from TRS-RenTelco

Tektronix Home Page


Read More
  • Configurations
  • Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Case Accessory Jewel Clear Plastic

    Qty: 1
  • Adapter MMCX 0.100 Center 0.025 Square Pin

    Qty: 1
  • Support Align Probe with Living Hinge

    Qty: 1
  • Clip Tripod Foot Retainer

    Qty: 3
  • Tripod Flexible

    Qty: 1
  • Manual User

    Qty: 1
  • Wrench 5/16 in with Driver

    Qty: 1
  • Softcase with Foam for Probe Accessories

    Qty: 1
  • Case Soft

    Qty: 1
  • Probe Tip MMCX for TIVH Series 50x Attenuation

    Qty: 1
  • Assembly Square Pin Probe Tip Accessory

    Qty: 1
Rent or Lease

Checkout first to get details on the cost.

Buy Used

Price: $29,600 $19,240
