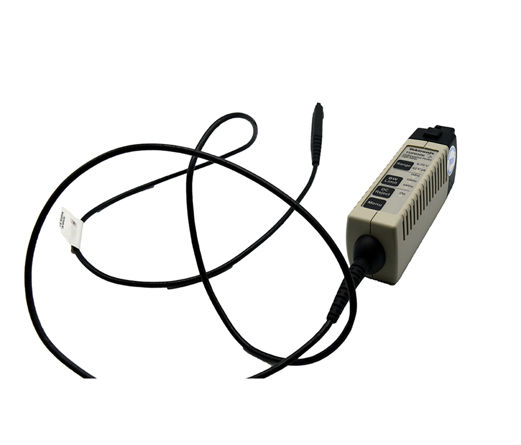

Tektronix TDP0500

500 MHz High Voltage Diff Probes with TekVPI Interface

Key performance specifications

  • 1 GHz and 500 MHz probe bandwidth
  • <1 pF differential input capacitance
  • 1 MO differential input resistance
  • ?42 v (DC pk AC) differential input voltage
  • >18 dB CMRR (at 250 MHz 50X attenuation)

Key features

  • Outstanding electrical performance
    • Selectable bandwidth-limiting filters
    • DC reject
  • Versatile DUT connectivity
    • Small compact probe head for probing small geometry circuit elements
    • Straight pin, square pin, solder down, variable pitch standard accessories
    • Robust design for reliability
  • Easy to use
    • Provides automatic units scaling and readout on the oscilloscope display
    • TDP1000, TDP0500
      • Connect directly to oscilloscopes with the TekVPI? probe interface
      • Easy access to scope-displayed probe menu for probe setup control and operating status information
      • Remote GPIB/USB probe control through the oscilloscope
      • AutoZero ? zeros out output offset
Read More
  • Configurations
  • Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Marker Kit

    Qty: 1
  • Grabber

    Qty: 3
  • Accessory Kit Tip Saver (Set Of 2)

    Qty: 1
  • Adapter Y-Lead

    Qty: 2
  • Ground Lead (Set of 2)

    Qty: 1
  • Box Accessory Plastic

    Qty: 1
  • Accessory Kit Straight Tip

    Qty: 1
  • Lead Dual 1 in Solder Down Connectors

    Qty: 1
  • Adapter Solder 3 in

    Qty: 1
  • Longhorn Adapter

    Qty: 2
  • Carry Pouch

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
Rent or Lease

Checkout first to get details on the cost.
